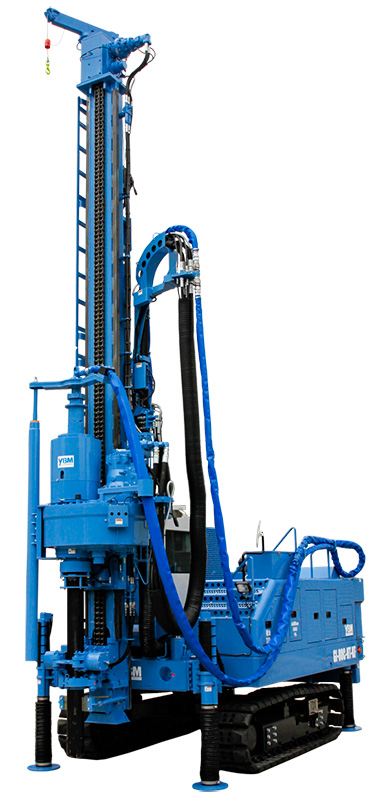

SOIL MIXING & STEEL PIPE PILING MACHINE
GI-80C-HT-KF-4
Higher feed pressure and spindle rotation torque.
Realized high-quality construction.
Features
- Equipped with the center-hole type spindle with the largest-level high torque.
- Possible to improve foundation works similar to large machines.
- Suitable for work in narrow sites.
Specifications
| MODEL | GI-80C-HT-KF-4 | |
|---|---|---|
| Spindle I.D. | 175 mm | |
| Spindle rotation speed | Low speed | 2 ～ 35 min-1 |
| High speed | 4 ～ 70 min-1 | |
| Spindle rotation torque | 15.6～58.8 kN・m｛1,590~6,000 kgf･m｝ | |
| Max. pull down | 103.0 kN｛10,500 kgf｝ | |
| Feed stroke | 5,000 mm（Max. column length 15.0m） | |
| Feed speed | 0～5 m/min | |
| Leader slide | 2,000 mm | |
| Leader swing | Left and right 3 degrees each | |
| Winch | 8.5 kN（⌀8×18m） ※Option | |
| Dimension when transportation(L x W x H) | 7,890 mm × 2,440 mm × 2,930 mm | |
| Gross weight | 17,200 kg(including main body and counter weight) 19,490 kg(including rods 15.5m ⌀1200 bit) |
|
| Gross weight when transportation |
17,740 kg(including WH6S water swivel, telescopic rod guide, rod 3.0m and counterweights)
|
|
| Ground pressure | 86.5 kPa（main body） | |
| Climbing ability | 15°（posture when transportation: including WH6S water swivel, telescopic rod guide, rod 3.0m and counterweights） | |
| Engine unit | Diesel engine 86 kW / (2,200 min-1) | |
| Required hydraulic power source | Rotation ：27.4 MPa｛280 kgf/cm2｝－ 280 L/min Feed：15.2 MPa｛155 kgf/cm2｝－ 66 L/min |
|
| Max. column diameter | ⌀1,200 mm | |
| Standard accessories | Construction process management system(tachometer, flow meter, recorder, etc.) | |
| Depth meter(feed, slide) | ||
| Outriggers(front and rear each 2) | ||
| Pull down force measuring cylinder | ||
| Telescopic rod guide | ||
| Rear camera | ||
| Optional accessories | Auxiliary camera | |
| Sub monitor | ||
| Cabin guard | ||
| Winch | ||
| Ladder | ||
The specifications are subject to change without prior notice.
