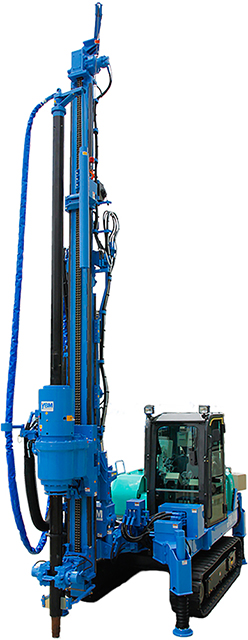

HIGH POWER GROUND IMPROVEMENT MACHINE
GI-50C-5 βSeries
With a maximum feed pressure 49.2kN, it can support a wide range of ground formation.
Features
- The rotation torque can be selected from two types of『34.3kN・m』 and 『40.6kN・m』.
- New hydraulic rotary motor enables to realize high torque rotation by single hydraulic motor and the rotary head has become lightweight and compact.
- Furthermore, stepless shifting is possible, and automatic or manual shifting can be selected, so it can be used in various situations.
Specifications
| MODEL | GI-50C-β40KL-5 | GI-50C-β35KL-5 |
|---|---|---|
| Spindle rotation speed | 11 ～ 64 min-1 | 13 ～ 76 min-1 |
| Spindle rotation torque | 7.1 ～ 40.6 kN・m | 6.0 ～ 34.3 kN・m |
| Applicable rod size | △152 | △140 |
| Max. pull down | 49.2 kN | |
| Feed stroke | 5,000 mm(with telescopic rod guide) | |
| Feed speed | 0～7 m/min | |
| Leader slide | 1,500 mm | |
| Leader swing | Left and right 5 degrees each | |
| Engine unit | Diesel engine 47.6 kW/(2,400 min-1) | |
| Dimension (when transportation) | 7,505 mm x 2,000 mm x 2,800 mm | |
| Gross weight (*1/*2) | 12,010 kg / 12,500 kg | 11,950 kg / 12,410 kg |
| Ground pressure(※2) | 78.8 kPa | 78.2 kPa |
1: when transportation
2: when Max. improvement works: including rods and bit.
The specifications are subject to change without prior notice.
