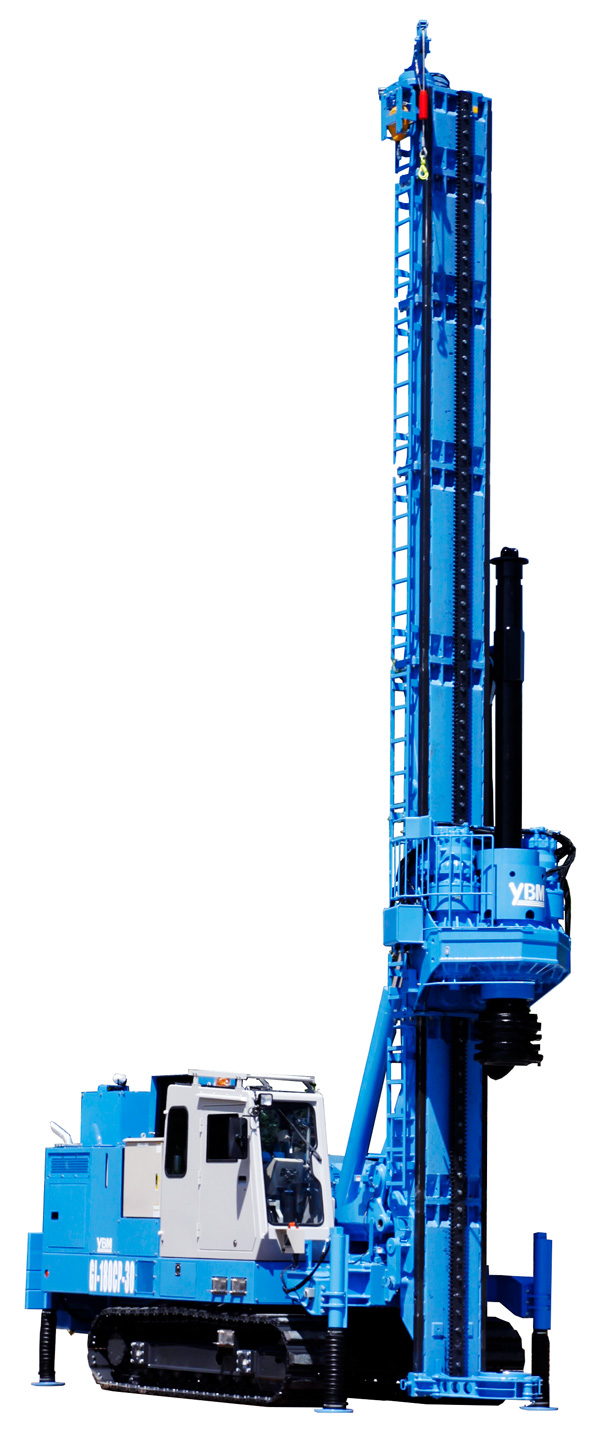

STEEL PIPE PILING MACHINE
GI-180CP-30
Max. Rotation torque 300kN・m
Max. pull down 198.7kN
Feed stroke 10,000mm
Steel pipe diameter ⌀190.7~406.4mm
Features
- Advanced technology to foundation pile market
Steel pipe piles using ICT control technology. - Possible to handle under height restrictions and low head construction with divisible leader.
Specifications
| MODEL | GI-180CP-30 | |
|---|---|---|
| Rotation torque | Normal mode：80～300 kN・m | Low torque mode：40～150 kN・m ※1 |
| Rotation speed | Normal mode：4～13 min-1 | Low torque mode：7～26 min-1※1 |
| Max. pull down/max. pull up | 1st 198.7 kN 2nd 116.8 kN※1 | |
| Feed stroke | 10,000 mm （steel pipe pile length 9,000 mm） | |
| Feed speed | 1st 4.5 m/min 2nd 8.0 m/min [Rapid feed 10.0 m/min] ※1 | |
| Chuck stroke | 2,500 mm（GL-2,150mm） | |
| Leader movable range | -90°～ 3°（Angle piling up to 15 degrees） | |
| Leader slide | 2000 mm | |
| Leader swing | Left and right 3 degrees each | |
| Winch | 19.6 kN ※Option | |
| Dimension when construction works(L x W x H) | 7,080 mm x 2,590 mm x 14,550 mm | |
| Dimensions when transportation(L x W x H) | 12,380 mm x 2,590 mm x 3,030 mm | |
| Gross weight | 36,000 kg (all accessories: including tools, steel pipe pile, counterweights) | |
| 29,000 kg（when transportation: excluding counterweight 4,080kg） | ||
| Engine unit | Diesel engine C4.4Tier4Final (AdBlue) 129.4 kW/(2,200 min-1) | |
| Required hydraulic power source | Rotation ：29.5 MPa – 350 L/min Feed：20.6 MPa – 66 L/min |
|
| Standard accessories | Winch, Construction process management system, Interlock switch, Safety block, Sub monitor, Rear camera | |
| Optional accessories | Auxiliary camera | |
1 The above values are theoretical values depending on the weight of each mechanism, friction resistance, and other factors.
The specifications are subject to change without prior notice.
