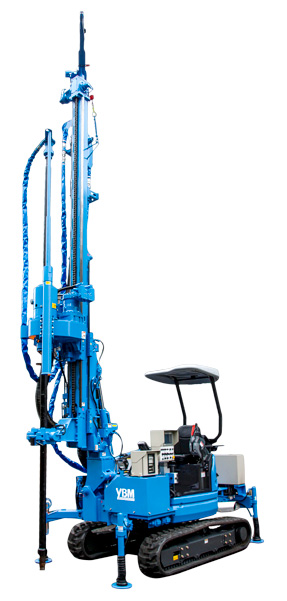

GROUND IMPROVEMENT MACHINE
GI-35C-4
Features
- Suitable for narrow space.
- Achieved spindle rotation torque9.8kN・m.
- Possible to operate at narrow space without compromising working stability with the adjustable width type crawler 1,550 mm to ∼1,800mm.
- Easy to stabilize with 4-points outrigger.
Specifications
| MODEL | GI-35CF-HT-4 |
|---|---|
| Spindle I.D. | 93 mm |
| Spindle rotation speed | 26～79 min-1 |
| Spindle rotation torque | 3.2～9.8 kN・m |
| Feed stroke | 4,000 mm |
| Feed speed | 0～6.4 m/min |
| Leader slide | 1,000 mm |
| Leader swing | Left and right 5 degrees each |
| Engine unit | Diesel engine 17.5 kW/(2,200 min-1) |
| Dimension (L x W x H) |
5,980 mm x 1,550 mm x 2,740 mm （when transportation: including telescopic rod guide） |
| Gross weight | 5,550 kg |
| Ground pressure | 50.1 kPa |
The specifications are subject to change without prior notice.
