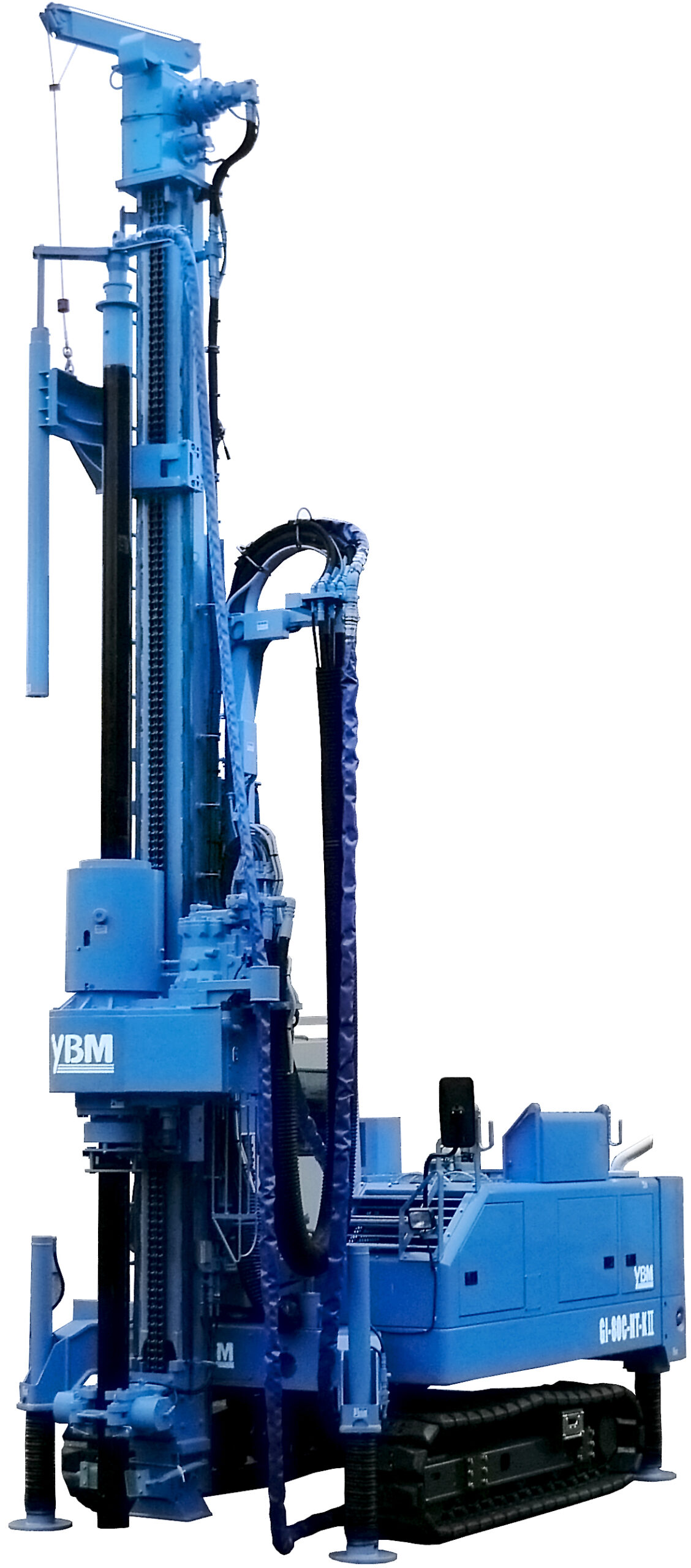

SOIL MIXING & STEEL PIPE PILING MACHINE
GI-80C-HT-KⅡ
Specifications
| MODEL | GI-80C-HT-KⅡ | |
|---|---|---|
| Spindle I.D. | ⌀175 mm | |
| Spindle rotation speed | 0～80 min-1 | |
| Spindle rotation torque | 45.2 kN・m | |
| Max. pull down | 83.3 kN | |
| Feed stroke | 5,000 mm（Max. column length13.5m） | |
| Feed speed | 0～7 m/min | |
| Leader slide | 2,000 mm | |
| Leader swing | Left and right 5 degrees each | |
| Winch | 8.5（⌀8×18m） | |
| Dimension when transportation（Ｌ×Ｗ×Ｈ） | 8,116mm × 2,380mm × 2,960mm | |
| Gross weight when transportation (with telescopic rod guide, water swivel and rod 3.0m) |
16,100 kg | |
| Engine unit | Diesel engine 78.1kW /（ 2,200 min-1） | |
| Required hydraulic power source. | Rotation：29.5 MPa×280 L/min | |
| Feed：15.7 MPa×66 L/min | ||
| Max. column diameter | ⌀1,200 mm | |
The specifications are subject to change without prior notice.
