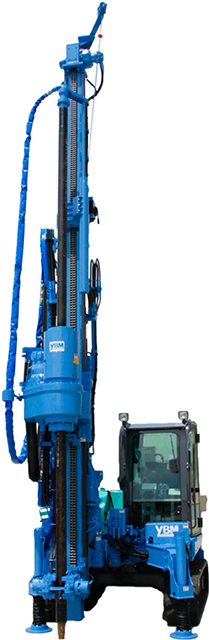

HIGH POWER GROUND IMPROVEMENT MACHINE
GI-50C-5 αSeries
With a maximum feed pressure49.2kN,it can support a wide range of ground formation.
Features
- The center hole type rotary head allows the rod to be gripped at any position, so long rods can be set regardless of the feed stroke.
- The shape of the swivel head gear case has been improved to make square construction easier.
Specifications
| MODEL | GI-50C-α20K-5 | GI-50C-α17K-5 | GI-50C-α15K-5 |
|---|---|---|---|
| Spindle rotation speed | 23 ～ 70 min-1 | 26 ～ 80 min-1 | 31 ～ 94 min-1 |
| Spindle rotation torque | 6.5 ～ 19.7 kN・m | 5.6 ～ 17.0 kN・m | 4.8 ～ 14.5 kN・m |
| Applicable rod size | ⌀139.8 | ⌀114.3 | |
| Max. pull down | 49.2 kN(5,000 kgf) | ||
| Feed stroke | 5,300 mm(with telescopic rod guide) | ||
| Feed speed | 0～7 m/min | ||
| Leader slide | 1,200 mm | ||
| Leader swing | Left and right 5 degrees each | ||
| Engine unit | Diesel engine 47.6 kW/(2,400 min-1) | ||
| Dimension (when transportation) | 7,780 mm × 2,000 mm × 2,780 mm (when transportation) | 7,780 mm × 2,000 mm × 2,770 mm (when transportation) | |
| Gross weight(※1 / ※2) | 10,640 kg / 11,080 kg | 10,510 kg / 10,820 kg | |
| Ground pressure(※2) | 69.9 kPa | 68.2 kPa | |
1: when transportation
2: when Max. improvement works: including rods and bit.
The specifications are subject to change without prior notice.
