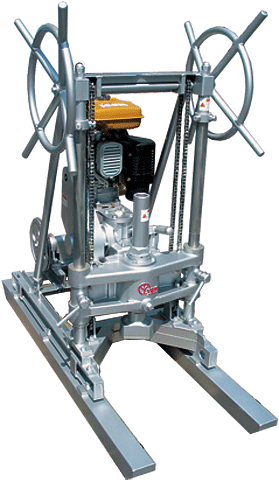

| Nominal Depth |
: |
10 m |
| Spindle Bore |
: |
43 mm, ( Option 46 mm ) |
| Hoisting Capacity |
: |
1 kN |
| Prime Mover |
: |
5.5 kW |
| Dimension(L*W*H) |
: |
1,030 x 740 x 1,525 mm |
|
APPLICATION:
Hand feed drilling for shallow investigation
FEATURES:
Super light weight,
Man portable
(heaviest part when disassembled 27 kg
|
|
| |
|
 |
| Nominal Depth |
: |
50 m |
| Spindle Bore |
: |
48 mm, ( Option 46 mm ) |
| Hoisting Capacity |
: |
4.9 kN |
| Prime Mover |
: |
3.7 - 5.5 kW |
| Dimension(L*W*H) |
: |
1,040 x 700 x 900 mm |
| Option |
: |
Hydraulic chuck
Hydraulic slide |
|
APPLICATION:
Inspection drilling for Soil/Core,
100 m
Shallow Well drilling,
50 m
Standard penetration test
Inspection on a mountain top (Light weight)
FEATURES:
Super light weight, (Aluminum Cases)
Three speeds change (Fwd only)
Easy disassembling into Four (4) components
|
|
| |
|
 |
| Nominal Depth |
: |
150 m |
| Spindle Bore |
: |
48 mm |
| Hoisting Capacity |
: |
14.7 kN |
| Prime Mover |
: |
5.5 - 7.5 kW |
| Dimension(L*W*H) |
: |
1,550 x 700 x 1,310 mm |
| Option |
: |
Hydraulic chuck
Hydraulic slide |
|
APPLICATION:
Inspection drilling for Soil/Core,
150 m
Shallow Well drilling,
100 m
Standard penetration test
Inspection on a mountain top (Light weight)
FEATURES:
light weight, (Aluminum Cases)
Three speeds change (Fwd only)
Easy disassembling into Four (4) components
|
|
| |
|
 |
| Nominal Depth |
: |
300 m |
| Spindle Bore |
: |
93 mm |
| Hoisting Capacity |
: |
19.6 kN |
| Prime Mover |
: |
7.5 - 11 kW |
| Dimension(L*W*H) |
: |
1,650 x 820 x 1,485 mm |
| Option |
: |
Hydraulic chuck |
|
APPLICATION:
Inspection drilling for Soil/Core,
200 m
Water Well drilling,
Max. 200 m
Standard penetration test
FEATURES:
Hydraulic Sliding device
Four speeds change (Fwd only)
Strong and Long life
|
|
| |
|
 |
| Nominal Depth |
: |
300 m |
| Spindle Bore |
: |
93 mm |
| Hoisting Capacity |
: |
19.6 kN |
| Prime Mover |
: |
11 - 15 kW |
| Dimension(L*W*H) |
: |
1,560 x 860 x 1,400 mm |
| Option |
: |
Hydraulic chuck
Cat Head |
|
APPLICATION:
Inspection drilling for Soil/Core,
300 m
FEATURES:
Hydraulic Sliding device
Rotation speeds change (4 Fwd)
Strong and Long life
|
|
| |
|
 |
| Nominal Depth |
: |
300 m |
| Spindle Bore |
: |
93 mm |
| Hoisting Capacity |
: |
19.6 kN |
| Prime Mover |
: |
11 - 15 kW |
| Dimension(L*W*H) |
: |
1,560 x 860 x 1,400 mm |
| Option |
: |
Hydraulic chuck |
|
APPLICATION:
Inspection drilling for Soil/Core,
300 m
Water Well drilling,
Max. 200 m
Standard penetration test
FEATURES:
Hydraulic Sliding device
Rotation speeds change (3 Fwd, 1 Reverse)
Strong and Long life
|
|
| |
|
 |
| Nominal Depth |
: |
600 m |
| Spindle Bore |
: |
105 mm ( 155 mm option ) |
| Hoisting Capacity |
: |
58.8 kN |
| Prime Mover |
: |
22 - 30 kW |
| Dimension(L*W*H) |
: |
3,000 x 1,130 x 1,890 mm |
| Option |
: |
|
|
APPLICATION:
Inspection drilling for Soil/Core,
600 m
Well drilling, Max. 500 m
Wireline Core Drilling Device (Optional)
FEATURES:
Hydraulic Sliding device
Rotation speeds change (6 Fwd, 2 Reverse)
Strong and Long life
|
|
| |
|
 |
| Nominal Depth |
: |
1,500 m |
| Spindle Bore |
: |
155 mm |
| Hoisting Capacity |
: |
78.4 kN |
| Prime Mover |
: |
30 - 37 kW |
| Dimension(L*W*H) |
: |
4,110 x 1,480 x 3,130 mm |
| Option |
: |
|
|
APPLICATION:
Inspection drilling for Soil/Core,
1,500 m
Well drilling, Max. 1,000 m
Wireline Core Drilling Device (Optional)
FEATURES:
Hydraulic Sliding device
Rotation speeds change (6 Fwd, 2 Reverse)
Strong and Long life
|
|
| |
|
 |
| Nominal Depth |
: |
200 m |
| NQ Rod |
: |
3,000 mm |
| Rotation Speed |
: |
H:800 rpm , L:200 rpm |
| Rotation Torque |
: |
H:690 N-m , L:220 N-m |
| Feed(Pull Down) |
: |
Max. 20.7 kN |
| Feed(Pull Up) |
: |
Max. 30.7 kN |
| Diesel Engine |
: |
28.8 kW / 2,400 rpm |
| Mud Pump |
: |
GP-10II |
| |
|
Flow 100 L / min , 25 bars |
| Dimension(L*W*H) |
: |
8,260 x 1,800 x 3,400 mm |
|
APPLICATION:
Inspection drilling for Soil / Core, Core drilling, Max. 200 m by NQ rod Wireline Core Drilling Device
FEATURES:
Hydraulic Sliding device ( 300 mm )
Selectable Rotation speeds ( High,Low)
Possible to get 3,000 mm core
Complete set or Each components
Strong and Long life |
|
| |
|
|
