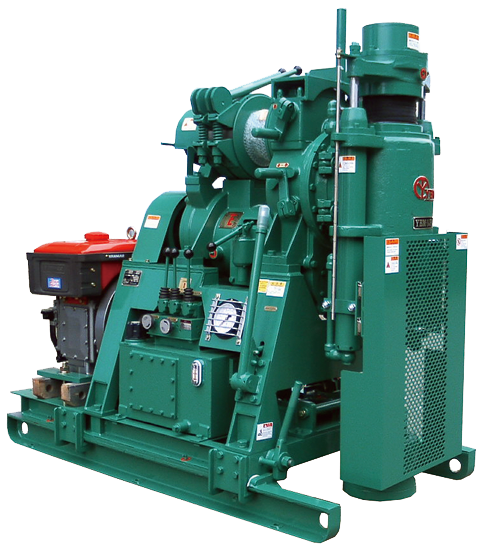

Multi-purpose High-performance Drilling Machine
YBM-3JES
Features
- Long-selling machine for its high speed rotation, high torque and spindle dia.⌀93.
Possible to increase work efficiency and operational safety. - Selectable for spindle rotation speed (A and B), and they have 4-speeds range.
Applicable for various layers and drilling holes. - Possible to disassemble it separately as each component.
Well reputation for its toughness in operation.
Specifications
| ■Drilling Capacity | |
|---|---|
| Nominal Depth | 300 m |
| AW Rod | 320 m |
| BW Rod | 210 m |
| Nq Rod | 250m |
| HQ Rod | 160m |
| ■Swivel Head Ass’y | |
| Spindle Inner Dia. | 93 mm |
| Spindle Stroke | 500 mm |
| Spindle Rotation | （A speed） 57、115、230、345 min-1 |
| （B speed） 107、215、429、644 min-1 |
|
| Max. Pull Down | 58.2 kN |
| Max. Pull Up | 58.2 kN |
| Spindle Torque | (A speed) 3.5 kN・m |
| (B speed) 0.9 kN・m | |
| ■Transmission | |
| Gear Shift Type | 4-speeds transmission Sliding Gear |
| Clutch Type | Dry single disk |
| ■Hoist | |
| Type | Planetary Gear Hand Brake |
| Drum Size | ⌀160 × 130 mm |
| Drum Capacity | ⌀12mm x 42 m |
| Hoisting Capacity | 19.6 kN |
| ■Hydraulic Pump | |
| Type | Variable discharge vane pump |
| Discharge Pressure | Normal：1.9～3.9 MPa |
| Max.10.3 MPa | |
| ■Prime Mover | |
| Output | 11.4 kW-P |
| ■Dimension & Weight | |
| Weight （Without Prime Mover） |
820kg Max. Disassembled Parts Weight：200 kg |
| Dimension (L*W*H) |
1,560 * 860 * 1,440mm |
| ** Options ** | |
| ・Self-propelling System ・Hydraulic Chuck ・Wire Guide Roller | |
Drilling Capacity is calculated based on hoisting capacity, it depends on the soil condition and bit size.
The specifications are subject to change without prior notice.
