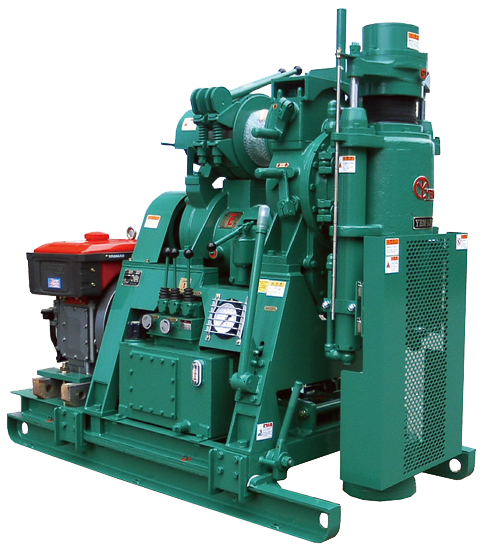

Multi-purpose High-performance Drilling Machine
YBM-3JES
规格
| ■Drilling Capacity | |
|---|---|
| Nominal Depth | 30 m |
| AW Rod | 320 m |
| BW Rod | 210 m |
| Nq Rod | 250m |
| HQ Rod | 160m |
| ■Swivel Head Ass’y | |
| Spindle Inner Dia. | 93 mm |
| Spindle Stroke | 500 mm |
| Spindle Rotation | （A speed） 57、115、230、345 min-1 |
| （B speed） 107、215、429、644 min-1 |
|
| 最大下压力 | 58.2 kN |
| 最大上拉力 | 58.2 kN |
| 主轴扭矩 | (A speed) 3.5 kN・m |
| (B speed) 0.9 kN・m | |
| ■Transmission | |
| Gear Shift Type | 4-speeds transmission Sliding Gear |
| Clutch Type | Dry single disk |
| ■Hoist | |
| 种类 | Planetary Gear Hand Brake |
| Drum Size | ⌀160 × 130 mm |
| Drum Capacity | ⌀12mm x 42 m |
| Hoisting Capacity | 19.6 kN |
| ■Hydraulic Pump | |
| 种类 | Variable discharge vane pump |
| 吐出压力 | Normal：1.9～3.9 MPa |
| Max.10.3 MPa | |
| ■驱动系统 | |
| 输出 | 11.4 kW-P |
| ■尺寸 & 质量 | |
| 质量 （Without Prime Mover） |
820kg Max. Disassembled Parts Weight：200 kg |
| 尺寸 (L*W*H) |
1,560 * 860 * 1,440mm |
| ** 可选配件 ** | |
| ・Self-propelling System ・Hydraulic Chuck ・Wire Guide Roller | |
Drilling Capacity is calculated based on hoisting capacity, it depends on the soil condition and bit size.
设备进行升级时，有关上述规格的变动恕不提前通知。
