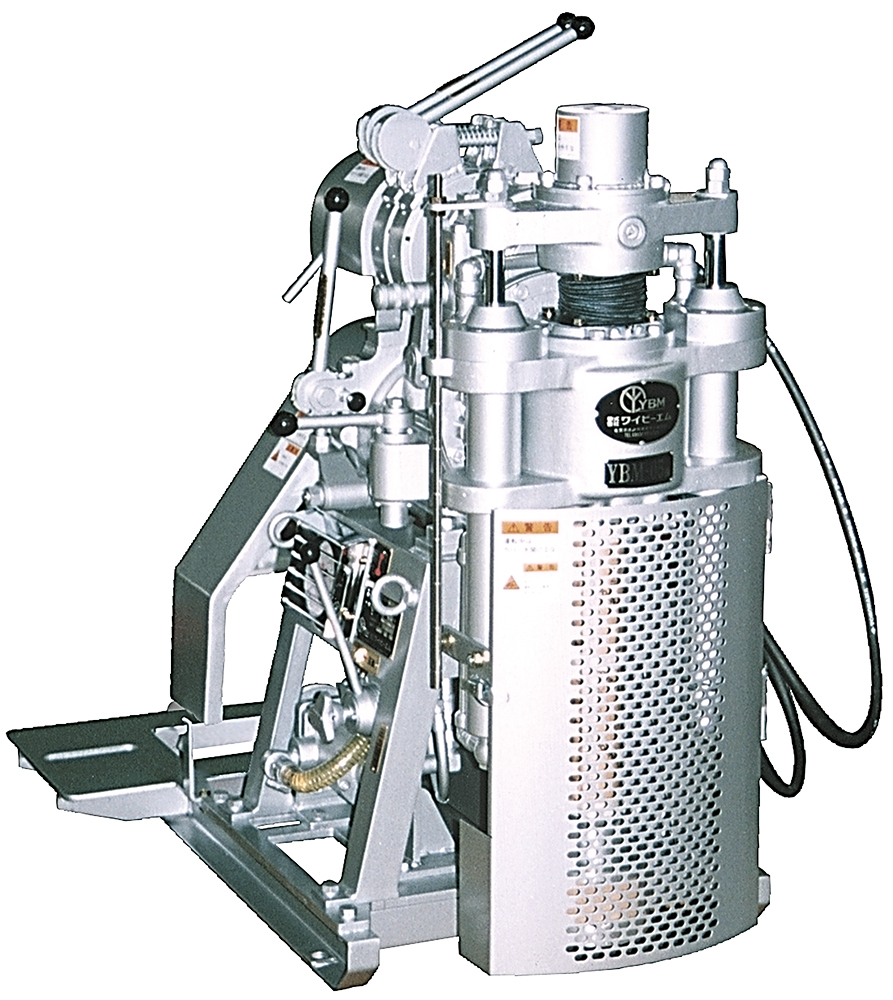

COMPACT HYDRAULIC DRILLING MACHINE
YBM-05DA-3
规格
| ■Drilling Capacity | ||
|---|---|---|
| Nominal Depth(m) | 50～100 | |
| 40.5mm Rod(m) | 110 | |
| 41.3mm Rod(m) | 80 | |
| EW Rod(m) | 120 | |
| ■Swivel Head | ||
| Spindle Inner Dia. (mm) | 48 | |
| Spindle Stroke(mm) | 500 | |
| Spindle Rotation(min-1) | 62、172、351 | |
| 最大下压力(kN) | 21.8｛2,220kgf｝ | |
| 最大上拉力 (kN) | 27.0｛2,750kgf｝ | |
| 主轴扭矩(N・m) | 565.9｛57.7kgf・m｝ | |
| ■Transmission | ||
| Gear Shift Type | 3-speeds transmission Sliding Gear |
|
| Clutch Type | Dry single disk | |
| ■Hoist | ||
| 型号 | Planetary Gear Hand Brake |
|
| Drum Size | ⌀100×70 | |
| Drum Capacity | ⌀9×20m | |
| Hoisting Capacity(kN) | 4.9｛500kgf｝ | |
| ■Hydraulic Pump | ||
| 种类 | Variable discharge vane pump | |
| 吐出压力(MPa) | Runnning | 2～4｛20～40kgf/cm2｝ |
| Max. | 6.9｛70kgf/cm2｝ | |
| ■驱动系统 | ||
| 输出 (kW) | 3.7kW/4P｛5ps｝ | |
| ■尺寸 & 质量 (Without Prime Mover) | ||
| 质量(kg) | 280（Max. Disassembled Components Weight 52kg） | |
| 尺寸 (L x W x H)(mm) | 1,160×550×1,040 | |
| ■可选配件 | ||
| Speed Control Valve, Setting Base for Mud Pump Hydraulic Chuck, Hydraulic Slide Base |
||
Drilling Capacity is calculated based on hoisting capacity, it depends on the soil condition and bit size.
设备进行升级时，有关上述规格的变动恕不提前通知。
