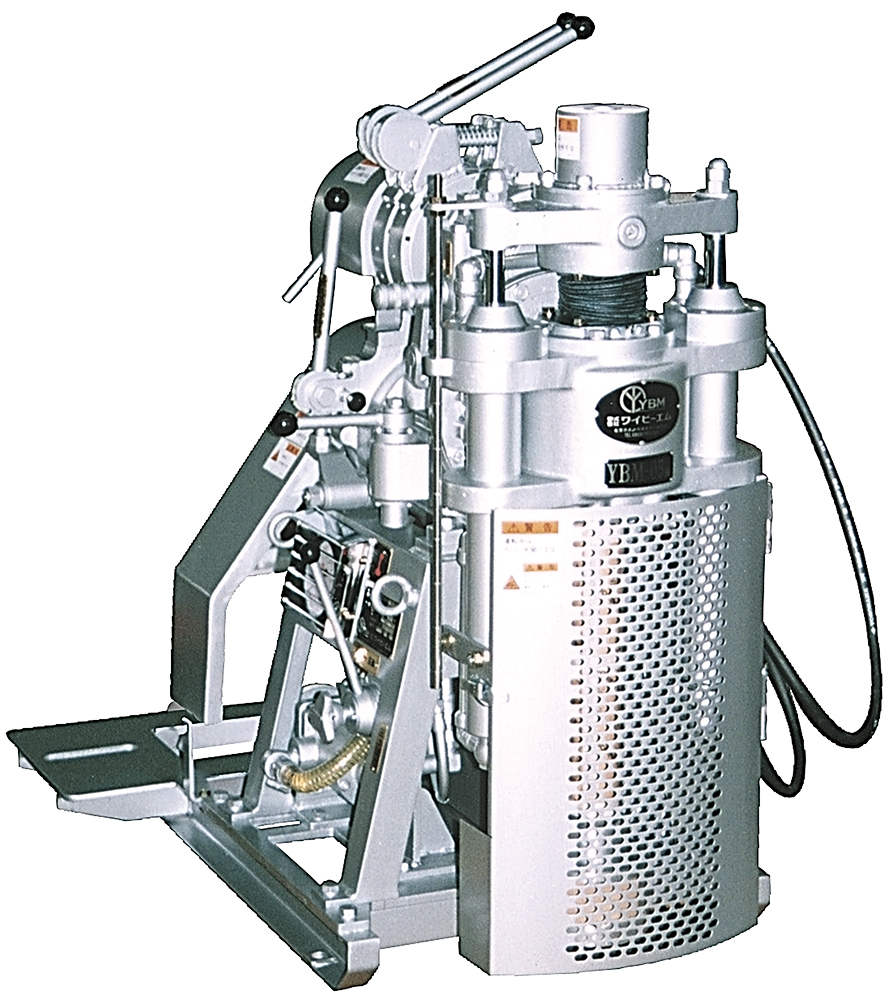

COMPACT HYDRAULIC DRILLING MACHINE

YBM-05DA-3

Features

Easy to carry separately and install due to its small-size & light weight.

With optional GP-5 grout pump, possible to operate with one engine. Applicable for various type of drilling work such as soil investigation, and grouting work by its compact and high performance.

Specifications

■Drilling Capacity
Nominal Depth(m) 50~100
40.5mm Rod(m) 110
41.3mm Rod(m) 80
EWロッド(m) 120
■Swivel Head
Spindle Inner Dia. (mm) 43
Spindle Stroke(mm) 500
Spindle Rotation(min-1) 62、172、351
Max. Pull Down(kN) 21.8{2,220kgf}
Max. Pull Up (kN) 27.0{2,750kgf}
Spindle Torque
(N・m)
565.9{57.7kgf・m}
■Transmission
Gear Shift Type 3-speeds transmission
Sliding Gear
Clutch Type Dry single disk
■Hoist
Model Planetary Gear
Hand Brake
Drum Size ⌀100×70
Drum Capacity ⌀9×20m
Hoisting Capacity(kN) 4.9{500kgf}
■Hydraulic Pump
Type Variable discharge vane pump
Discharge Pressure(MPa) Runnning 2~4{20~40kgf/cm2}
Max. 6.9{70kgf/cm2}
■Prime Mover
Output(kW) 3.7kW/4P{5ps}
■Dimension & Weight (Without Prime Mover)
Weight(kg) 280(Max. Disassembled Components Weight 52kg)
Dimension (L x W x H)(mm) 1,160×550×1,040
■Options
Speed Control Valve, Setting Base for Mud Pump
Hydraulic Chuck, Hydraulic Slide Base

Drilling Capacity is calculated based on hoisting capacity, it depends on the soil condition and bit size.

The specifications are subject to change without prior notice.
