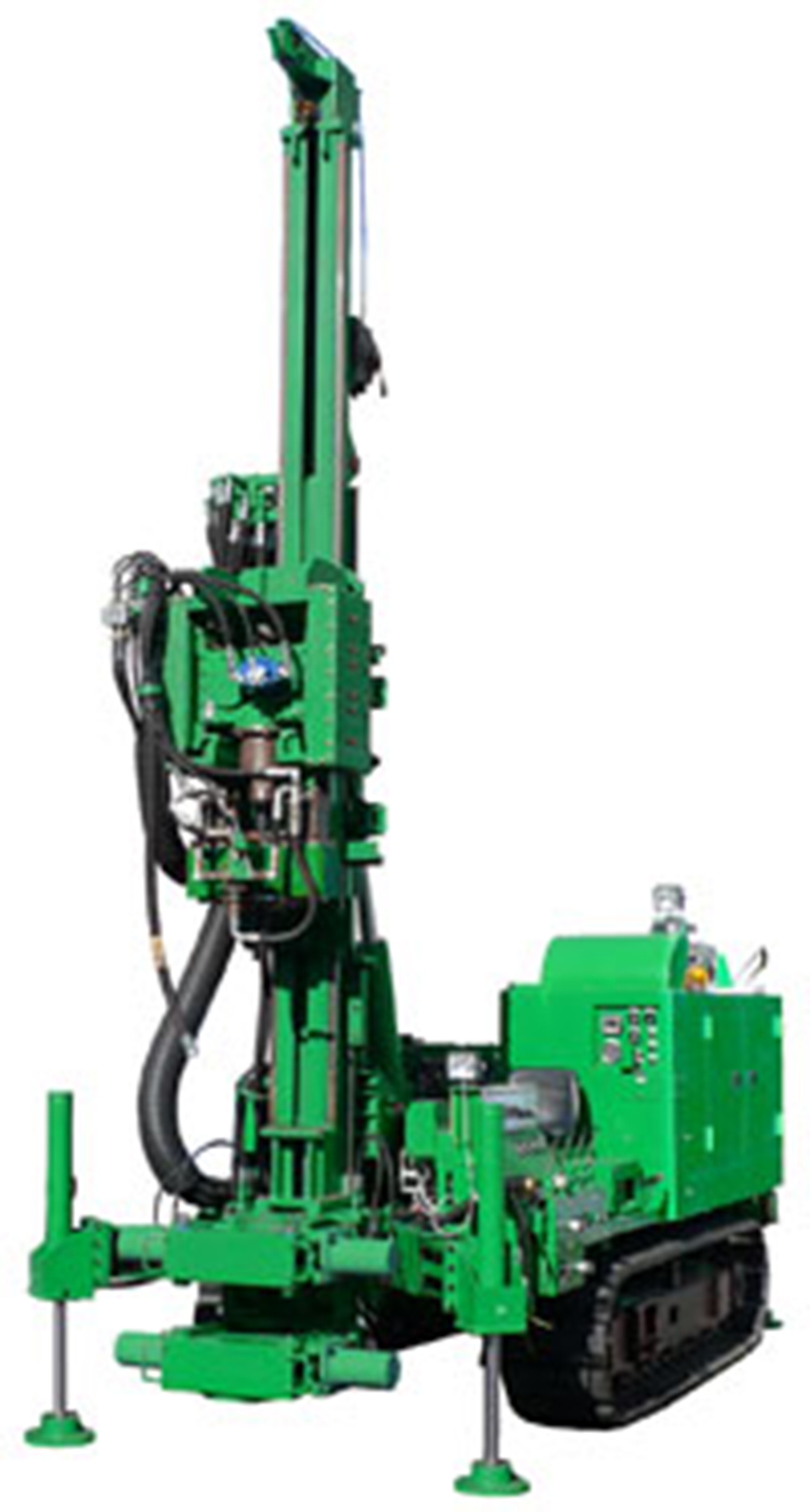

VIBRO DRILL
ECO-10V
Features
Low noise, High-speed drilling!
- Drilling max. 318mm diameter with centralizer (wrench & clamp)
- High performance & powerful drilling by stable and safe operation with outriggers.
- High mobility with its compact size and crawler. Possible to increase operation efficiency.
Low noise and rapid drilling by using vibration mechanism!!
Applicable for various type of well drilling, soil investigation and geothermal heat exchange, various construction drilling work.
*“Low noise” means that the noise of drilling by vibration drill is lower than rotary percussion drill.
Specifications
| ■Drilling Ability | |
|---|---|
| Applicable Casing Diameter | 96, 118, 133, 165, 216, 318 mm |
| Drilling Depth | Approx. 60m（with 216mm double tube core drilling） |
| ■Drifter | |
| Vibration force | 88 kN |
| Spindle Rotation Speed | Max 70 min-1 |
| Max 35 min-1 | |
| Rotation Torque | Max 3.9 kN・m |
| Max 7.8 kN・m | |
| ■Feed | |
| Type | Hydraulic Feed Cylinder |
| Feed Speed | 0～14 m / min（Drilling 0～2.2 m /min） |
| Feed Stroke | 2,500 mm |
| Max Pull Down | 49 kN |
| Max Pull Up | 130 kN |
| ■Prime Mover | |
| Output | 96 kW / 2,200 min-1 |
| ■Dimension | |
| Dimension（L x W x H mm） | 5,640 x 1,900 x 2,560 |
| Gross Weight | 10,500 kg |
The specifications are subject to change without prior notice.
