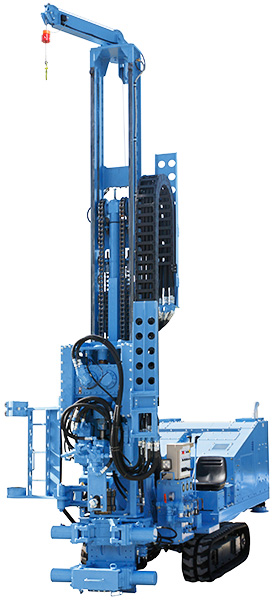

GEOTHERMAL WELL DRILLING MACHINE
HD-90V-GT
- The width is small as 1,400 mm when constructing, it can be used in narrow space.
- Max. vibration force is 58.9kN for its vibration unit, it can drill powerfully.
- 2 m rod is available
Specifications
| ◆Drilling Capacity | ||
|---|---|---|
| Applicable casing outer dia. | Max.⌀165mm | |
| Applicable rod length | 2,000 mm | |
| ◆Drifter (Rotation + Vibration) | ||
| Type | Hydraulic 2speed switching | |
| Rotation (Rotation only) | High: 0～110 min-1 | Low: 0～55 min-1 |
| Rotation (with Vibration) | High: 0～45 min-1 | Low: 0～22 min-1 |
| Rotation Torque | High: 3.0 kN・m | Low: 6.0 kN・m |
| Vibration Unit | Vibration Force Max.58.9kN | |
| ◆Feed | ||
| Type | Hydraulic Cylinder & Chane Combination | |
| Feed Speed | 0 ~ 20 m/min (Under drilling 0~4m/min) | |
| Feed Stroke | 2,800 mm | |
| Max. Pull down | 49 kN | |
| Max. Pull up | 98 kN | |
| ◆Prime Mover | ||
| Engine | 40.8 kW / 2,400 min-1 | |
| ◆Dimension・Weight | ||
| Dimension (L x W x H) | 5,870mm×1,750mm×2,780mm (When transportation) | |
| Gross Weight | 7,510kg | |
The specifications are subject to change without prior notice.
