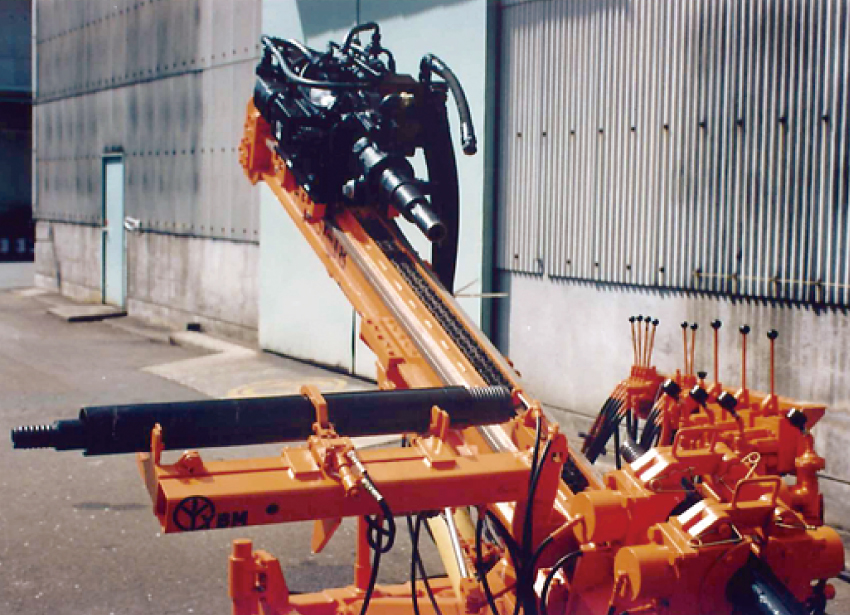

SEMI-AUTOMATIC ROD CHANGER RP-OTASUKEMAN
RP-OTASUKEMAN
Features
Light-weight, safe, easy rod handling!
Features
- Easy to align the core.
- The rod and casing can be set horizontally, regardless of drilling angle.
- Applicable to use the casing up to 1.5m (up to dia. ⌀165)
- No additional hydraulic unit.
Specifications
| Model | Semi-automatic rod changer |
|---|---|
| Model | RP-OTASUKEMAN |
| Casing diameter (mm) | ⌀96、⌀118、⌀133、⌀165 |
| Casing Length (mm) | 1,000、1,500 |
| Dimension (mm) | 1,200×1,100×600 |
| Gross Weight(kg) | 100kg |
The specifications are subject to change without prior notice.
