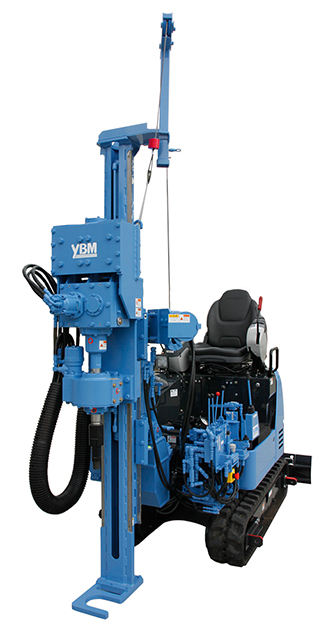

LOW NOISE AND RAPID DRILLING MACHINE FOR SOIL & GROUNDWATER CONTAMINATION SURVEY
ECO-1VⅣ
Features
High speed, low noise, accurate for soil investigation!
- Rapid drilling with YBM original vibro head.
- Possible to drill without water circulation, suitable for soil pollution survey (VOCs etc.)
- High mobility of turning and swing functions enables to improve the work efficiency.
- Possible to operate at narrow space without compromising working stability with the adjustable width type crawler.
- Adopted biodegradable hydraulic oil for environmental safety, in case of outflow.
- Standard penetration test is available with optional cone pulley.
Specifications
| Name | Vibro Drill (Crawler Type) |
|---|---|
| Model | ECO－1VⅣ |
| ◆Drifter | |
| Vibratory force | 20 kN （No load） |
| Spindle Rotation Speed | 25 min-1（Low） {53 min-1（High）} |
| Rotation Torque | 1,215 N･m （MAX） |
| ◆Feed | |
| Model | Hydraulic Cylinder feed |
| Feed power (pull down) | 35.4 kN |
| Feed power (pull up) | 53.7 kN |
| Stroke | 1,400 mm |
| ◆Engine・Dimension・Gross weight | |
| Engine | 10.6 kW / 2,400 min-1 |
| Dimension（L×W×H） | 3,270mm x 1,170mm x 1,840mm（when transportation） |
| Gross weight | 2,130 kg |
The specifications are subject to change without prior notice.
