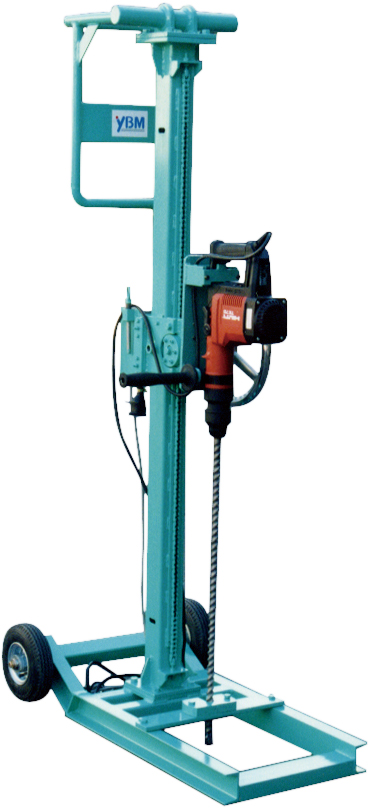

SURFACE SOIL GAS INVESTIGATION EQUIPMENT
ECO-0HDⅡ
Features
Easy transporting with tires!! Easy working with manual feed!!
- High efficiency drilling & running.
- It is targeting for soil and under ground pollution by Volatile Organic Chlorine (VOCs) compounds (ex. Trichlorethylene (C2HCl3), Tetrachloroethylenes (C2HCl4) and so on.) which is designated in the law “Soil Contamination Countermeasures Act.”
Features
Surface Soil Gas Investigation
VOCs spread in the soil as gasses. This characteristic enables to find the types and spread of pollutants by analyzing the concentration and ingredient of gases which is collected in some observation holes.
Specifications
| ■Name & Model | |
|---|---|
| Name | Surface Soil Gas Investigation Machine |
| Model | ECO-0HDII |
| ■Hammer Drill | |
| Electricity Consumption | 1,300 W |
| Full Load Rotation | 0～282 min-1 |
| Function | Rotation + Knocking or Knocking only |
| ■Feed | |
| Model | Hand Feed |
| Feed Stroke | 1,300 mm |
| ■Dimension & Wieght | |
| Weight | 92 kg |
| Length | 1,000 mm |
| Width | 635 mm |
| Height | 1,850 mm |
The specifications are subject to change without prior notice.
