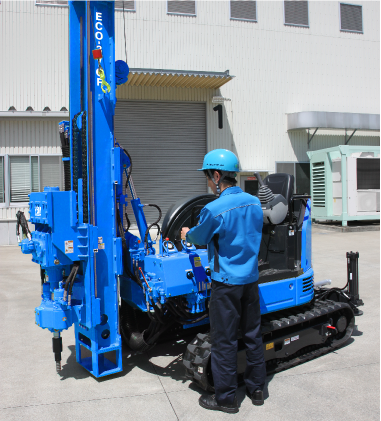

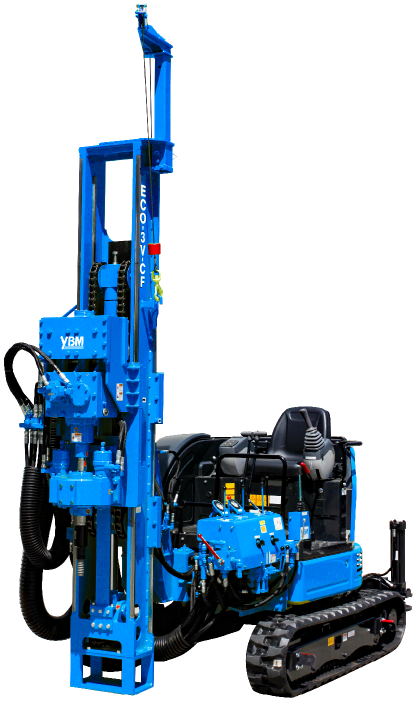

POWERFUL VIBRO DRILL
ECO-3V-CF
Features
Newly developed vibration technology realize its best performance for environmental investigation and geological survey with high vibration force & high torque.
- Enough force to drill 4 inches well.
- Possible to drill without water circulation, suitable for soil pollution survey (VOCs etc.)
- High performance & powerful drilling by stable and safe operation with outriggers.
- High mobility with its compact size and crawler. Possible to increase operation efficiency.
- Adopted biodegradable hydraulic oil for environmental safety, in case of outflow.
Specifications
Name | Hydraulic Vibro Drill (Crawler type) | |||
---|---|---|---|---|
Model | ECO-3V-CF | |||
◆Drifter | ||||
Vibratory force | 31 kN(No load) | |||
Spindle Rotation Speed | High Torque | 26 min-1 | Low Torque | 13 min-1 |
Rotation Torque | High | 1,880 N・m | Low Torque | 3,770 N・m |
◆Feed | ||||
Model | Hydraulic cylinder・Chain combined feed | |||
Feed power (pull down) | 26.2 kN | |||
Feed power (pull up) | 72.8 kN | |||
Stroke | 1,750 mm | |||
◆Engine・Dimension・Gross weight | ||||
Engine | 13kW/2,200min‐1 | |||
Dimension(L×W×H) | 3,240mm×1,645mm×2,490mm(when transportation) | |||
Gross Weight | 2,950 kg |
The specifications are subject to change without prior notice.
