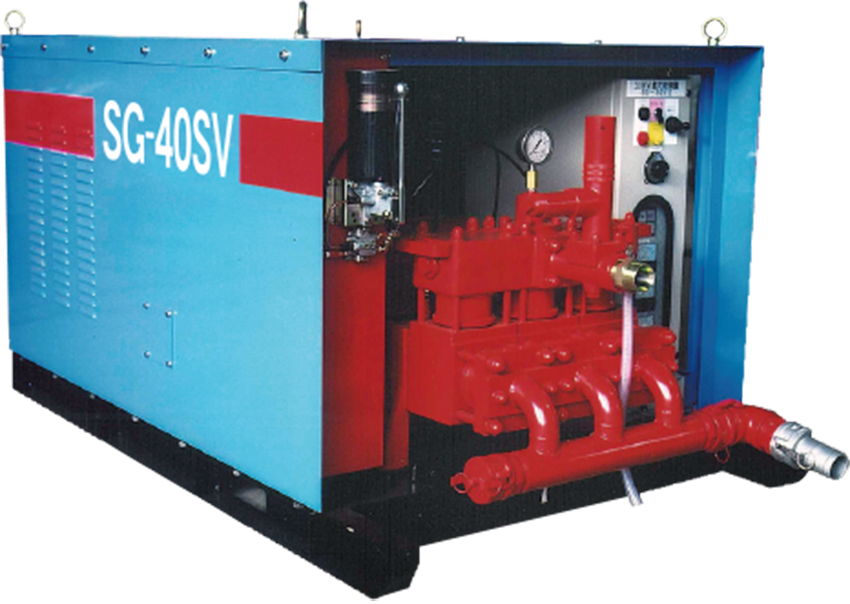

JET GROUT PUMP
SG-40SV
- Installing high performance reversible valve, this pump has a high durability and stable cement injection.
- Triplex plunger system gets a less pulsation, it makes a stable cement injection.
- Having experienced a various improvement, seals composition gets sophisticated to prolong lifespan of consumable parts, which makes longer maintenance interval.
Greasing is using Lubricator and Oil Bath system. - Discharge volume adjustment is easy to control using Vernier Dial
- High quality and High performance pump which has easy operation and low running cost.
Specifications
| Model | SG-40SV-e | |
|---|---|---|
| Pump type | Triplex plunger pump | |
| Plunger stroke | 100 mm | |
| Plunger dia. | 100 mm | |
| Maximum discharge pressure | 2.5 MPa | |
| Running discharge pressure | 2.0 MPa | |
| Theoretical discharge volume | 630 L/min | |
| Crank rotation speed | 267 min-1 | |
| Inverter Frequency Adjustable Range | （25）～70 Hz | |
| Suction bore | 100 mm (4”) | |
| Discharge bore | 50 mm (2”) | |
| Motor power | 30 kW – 4P Inverter controlled | |
| Voltage | Three-phase AC 200V | |
| Dimension(L×W×H) | 2,060 mm×1,300 mm×1,185 mm | |
| Weight | 1,815 kg | |
| Standard accessories | Variable speed remote controller | |
The specifications are subject to change without prior notice.
