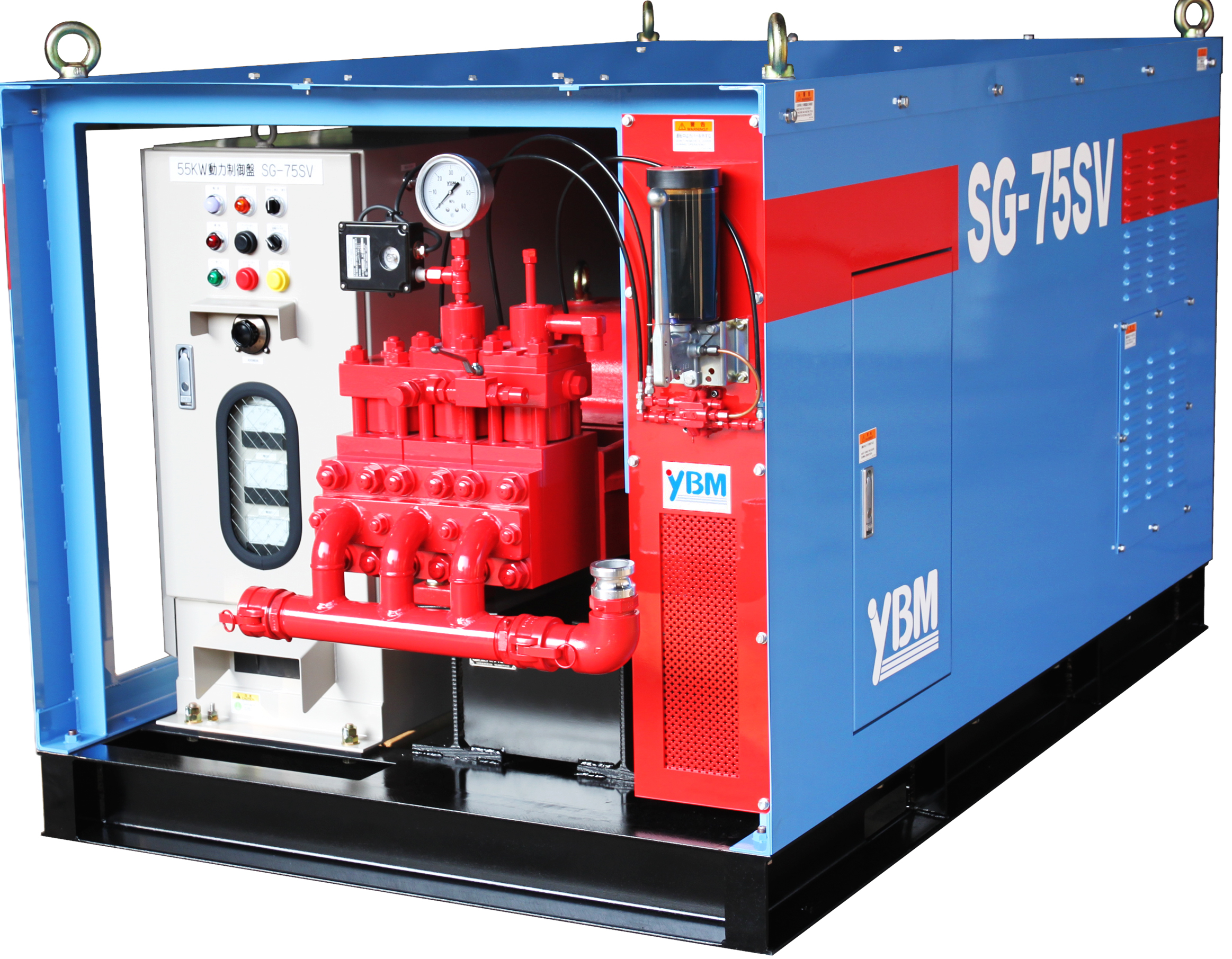

JET GROUT PUMP
SG-75SV
The SG Series pump have a high-performance, sophisticated plunger pump that has low pulsation and enables stable injection.
SG series pumps are highly acclaimed for their high efficiency, stable injection, easy maintenance, low running costs, and safety at a high level which are combined organically.
It is preferred by worldwide customers and is a staple pump of the Jet Grouting method that is carried out in various places.
Specifications
| Model | SG-75SV-e | |
|---|---|---|
| Pump type | Triplex plunger pump | |
| Plunger stroke | 46 mm | |
| Plunger dia. | 55 mm | |
| Maximum discharge pressure* | 30 MPa | 40 MPa |
| Theoretical discharge volume | 99 L/min | 73 L/min |
| Crank rotation speed | 302 min-1 | 224 min-1 |
| Inverter Frequency Adjustable Range | （39）～67 Hz | （39）～50 Hz |
| Suction bore | 50 mm (2”) | |
| Discharge bore | 20 mm (3/4”) | |
| Motor power | 55 kW – 4Ｐ Inverter controlled | |
| Voltage | Three-phase AC 200V | |
| Dimension(L×W×H) | 2,200 mm×1,350 mm×1,345 mm | |
| Weight | 2,190 kg | |
| Standard accessories | Variable speed remote controller | |
*Maximum discharge pressure depends on flow rate.
The specifications are subject to change without prior notice.
