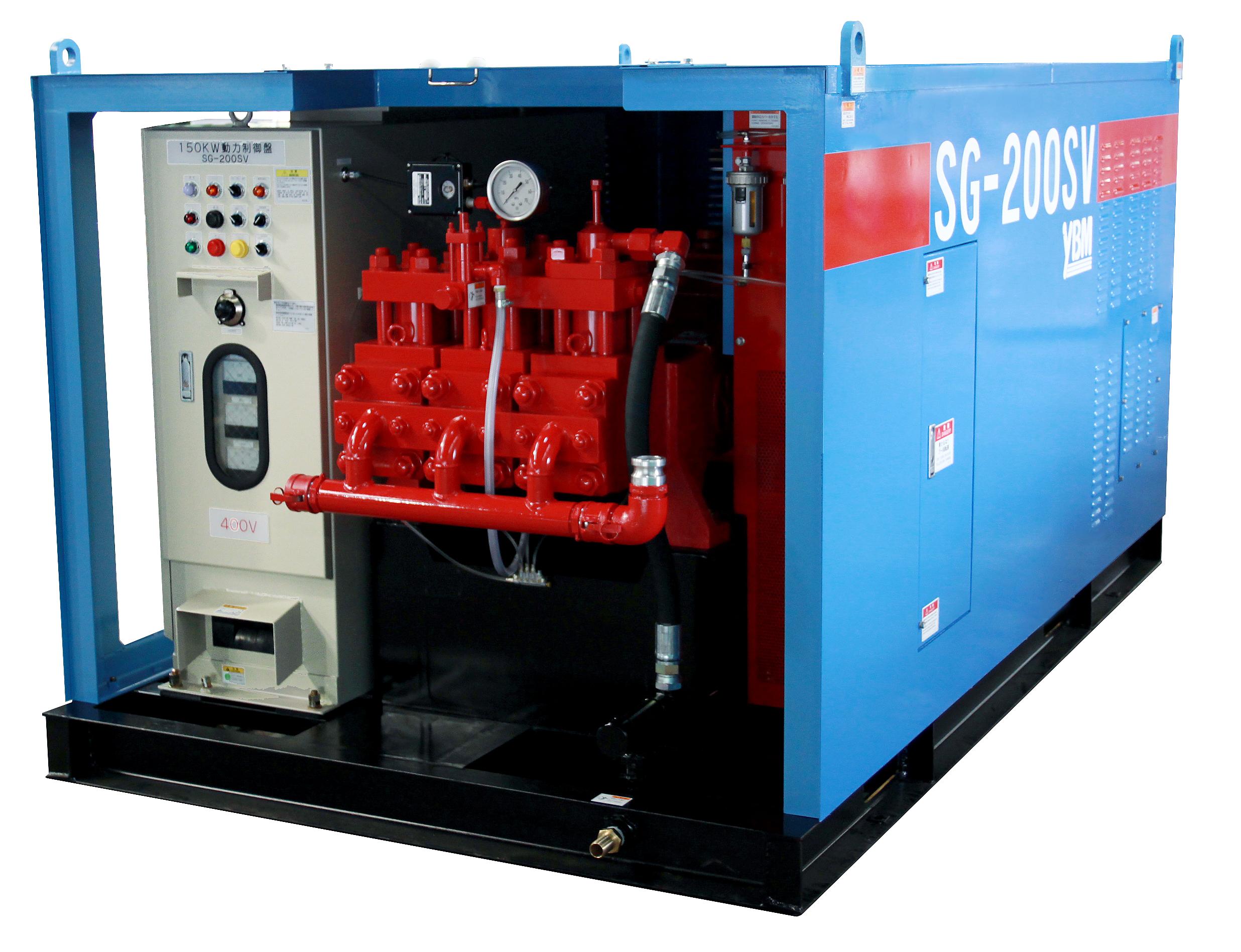

JET GROUT PUMP
SG-200SV
The SG Series pump have a high-performance, sophisticated plunger pump that has low pulsation and enables stable injection.
SG series pumps are highly acclaimed for their high efficiency, stable injection, easy maintenance, low running costs, and safety at a high level which are combined organically.
It is preferred by worldwide customers and is a staple pump of the Jet Grouting method that is carried out in various places.
Specifications
| Model | SG-200SV-e | |
|---|---|---|
| Pump type | Triplex plunger pump | |
| Plunger stroke | 100 mm | |
| Plunger dia. | 66 mm | |
| Maximum discharge pressure* | 35 MPa | 44 MPa |
| Theoretical discharge volume | 221 L/min | 182 L/min |
| Crank rotation speed | 260 min-1 | 215 min-1 |
| Inverter Frequency Adjustable Range | （18）～70 Hz | （26）～58 Hz |
| Suction bore | 50 mm (2”) | |
| Discharge bore | 25 mm (1”) | |
| Motor power | 150 kW – 6Ｐ Inverter controlled | |
| Voltage | Three-phase AC 200V | |
| Dimension(L×W×H) | 3,000 mm×1,750 mm×1,585 mm | |
| Weight | 5,080 kg | |
| Standard accessories | Variable speed remote controller | |
*Maximum discharge pressure depends on flow rate.
The specifications are subject to change without prior notice.
