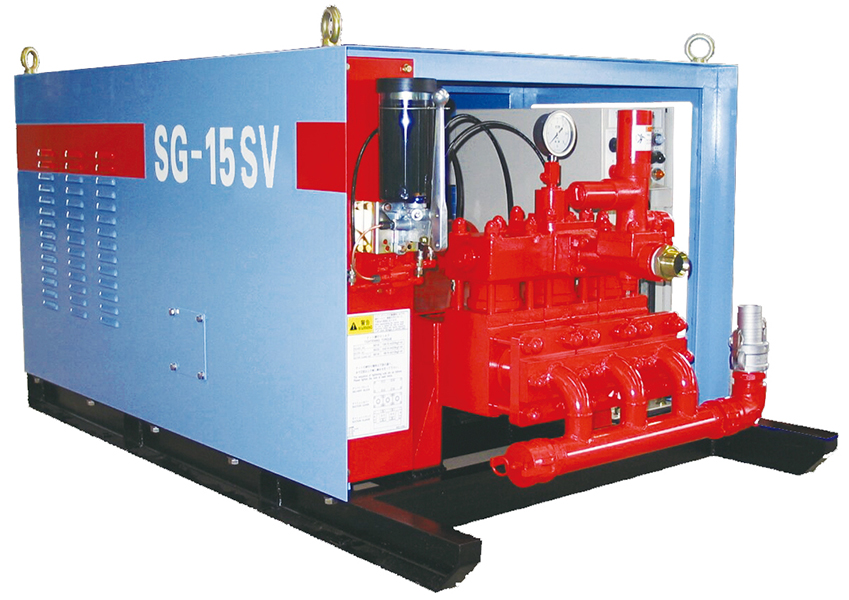

JET GROUT PUMP
SG-15SV
SG Series pump have a high-performance, sophisticated plunger pump that has low pulsation and enables stable injection.
SG series pumps features highly acclaimed for their high efficiency, stable injection, easy maintenance, low running costs, and safety at a high level which are combined effectively.
It is preferred by worldwide customer and is a popular and standard pump of the Jet Grouting method that is carried out in various places.
Specifications
| Model | SG-15SV-e | |
|---|---|---|
| Pump type | Triplex plunger pump | |
| Plunger stroke | 80 mm | |
| Plunger dia. | 80 mm | |
| Maximum discharge pressure* | 2.2 MPa | 2.9 MPa |
| Running discharge pressure | 2.0 MPa | 2.5 MPa |
| Theoretical discharge volume | 251 L/min | 221 L/min |
| Crank rotation speed | 208 min-1 | 183 min-1 |
| Inverter Frequency Adjustable Range | （15）～65 Hz | （15）～57 Hz |
| Suction bore | 50 mm (2”) | |
| Discharge bore | 40 mm (1-1/2”) | |
| Motor power | 11 kW-4P Inverter controlled | |
| Voltage | Three-phase AC 200V | |
| Dimension(L×W×H) | 1,800 mm×1,100 mm×975 mm | |
| Weight | 1,130 kg | |
| Standard accessories | Variable speed remote controller | |
*Maximum discharge pressure depends on flow rate.
The specifications are subject to change without prior notice.
