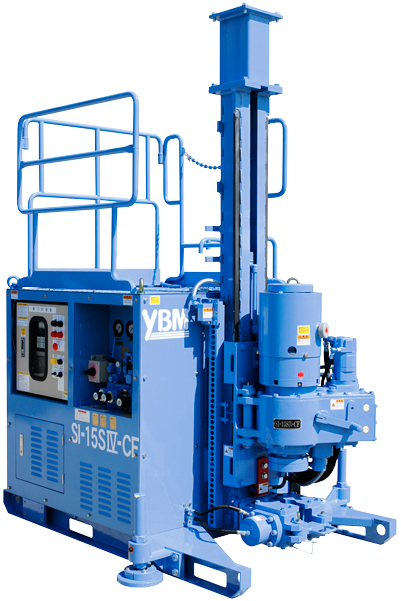

SI-15SⅣ-CF

Features

  • 1,000mm feed stroke with automatic stepping device
  • Variable rotation speed control
    Digital indicator of spindle rotation speed
  • Safe & simple operation by hydraulic chucking and clamp
  • Adopted hydraulic cylinder feed system

Specifications

Spindle I.D. 77 mm
Spindle Rotation Speed High 0 ~ 50 min-1
Low 0 ~ 14 min-1
Spindle Torque High 0.82 kN・m
Low 2.94 kN・m
Feed Stroke 1,000 mm
Feed Speed Up 0 ~ 2.8 m/min
Down 0 ~ 3.7 m/min
Max Pull Down Up 39.5 kN
Down 29.7kN
Prime Mover Rotation 7.5 kW – 4 P
Feed 5.5 kW – 4 P
Dimension(L×W×H) 1,800 mm×1,600 mm×2,450 mm(when transportation)
Gross Weight 1,350 kg

The specifications are subject to change without prior notice.
