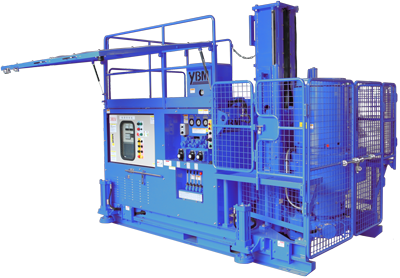

SI-60S-220
Features
- 1,000mm feed stroke with automatic stepping device
- Variable rotation speed control Digital indicator of spindle rotation speed
- Low noise model suitable for urban civil construction
- Safe & simple operation by hydraulic chucking and clamp
- Adopted hydraulic cylinder feed system
- Incorporated with automatic swing function
Specifications
| Spindle I.D. | 225 mm | ||
|---|---|---|---|
| Spindle Rotation Speed | High 0 ～ 23 min-1 | ||
| Low 0 ～ 11 min-1 | |||
| Spindle Torque | High 10.1 kN･m | ||
| Low 20.3 kN･m | |||
| Feed Stroke | 1,000 mm | ||
| Feed Speed | Up 2.5 m/min | ||
| Down 4.1 m/min | |||
| Slide Stroke | 300 mm | ||
| Max Pull Down | Mode1 | Up 106.4 kN | Down 64.8 kN |
| Mode2 | Up 150.7 kN | Down 91.9 kN | |
| Prime Mover | Rotation 30 kW – 4 P | ||
| Feed 11 kW – 4 P | |||
| Dimension（L×W×H） | 3,065 mm×2,100 mm×2,500 mm（when transportation） | ||
| Gross Weight | 6,000 kg | ||
The specifications are subject to change without prior notice.
