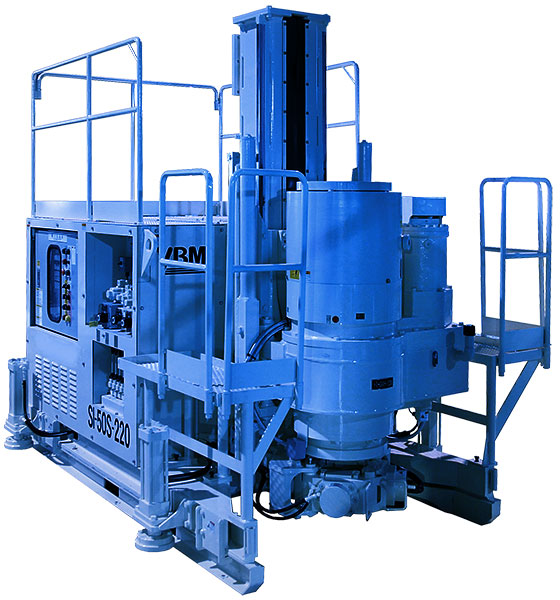

SI-50S-220
Features
- 1,000mm feed stroke with automatic stepping device
- Variable rotation speed control Digital indicator of spindle rotation speed.
- Low noise model suitable for urban civil construction
- Safe & simple operation by hydraulic chucking and clamp
- Adopted hydraulic cylinder feed system
- Incorporated with automatic swing function
Specifications
| Spindle I.D. | 225 mm |
|---|---|
| Spindle Rotation Speed | High 0 ～ 40 min-1 |
| Low 0 ～ 20 min-1 | |
| Spindle Torque | High 5.88 kN･m |
| Low 11.76 kN･m | |
| Feed Stroke | 1,000 mm |
| Feed Speed | Up 3.0 m/min |
| Down 4.3 m/min | |
| Slide Stroke | 300 mm |
| Max Pull Down | Up 98.0 kN |
| Down 68.6 kN | |
| Prime Mover | Rotation 30 kW – 4 P |
| Feed 5.5 kW – 4 P | |
| Dimension（L×W×H） | 2,700 mm×1,848 mm×2,500 mm（when transportation） |
| Gross Weight | 5,010 kg |
The specifications are subject to change without prior notice.
