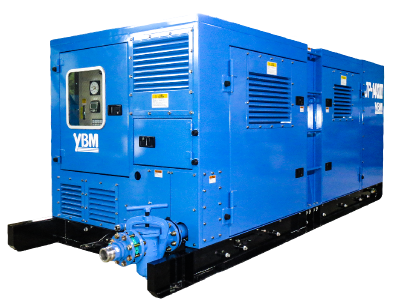

WATER JET PUMP
JP-140Ⅲ
- Designed Lightweight and Compact, which have highest performance in same class pump. (15MPa x 340L/min)
- Wear-resistance and reversible valve makes durability more than twice.
- Mechanical and electrical safety system are equipped for abnormal pressure increase prevent.
- High quality cylinder and valve system has durability for sea water.
- Greasing for plunger and packing is automatically injected by electric auto-greastar.
- Control Box c/w Pressure Gauge allows to adjust the pressure and flow rate remotely.
- Multi-unit linked operation can be conducted with one control box.
- Low pulsation reduced delivery hose damage and extends those lifespans.
- Easy to make an assembling, disassembling and periodical maintenance service with standard accessories.
Specifications
| ■Pump | |
|---|---|
| Plunger stroke | 95 mm |
| Plunger dia | 55 mm |
| Discharge pressure | 15 MPa |
| Theoretical discharge volume | 340 L/min |
| Suction bore | 80(STD) / 65(OPT) mm |
| Discharge bore | 25 mm |
| Crank rotation | 306～501 min-1 |
| ■Dimension and Weight | |
| Length | 4,030 mm |
| Width | 1,500 mm |
| Height | 1,608 mm |
| Weight | 3,950 kg |
Minimum discharge pressure and Maximum discharge volume is changed by Nozzle size.
The specifications are subject to change without prior notice.
