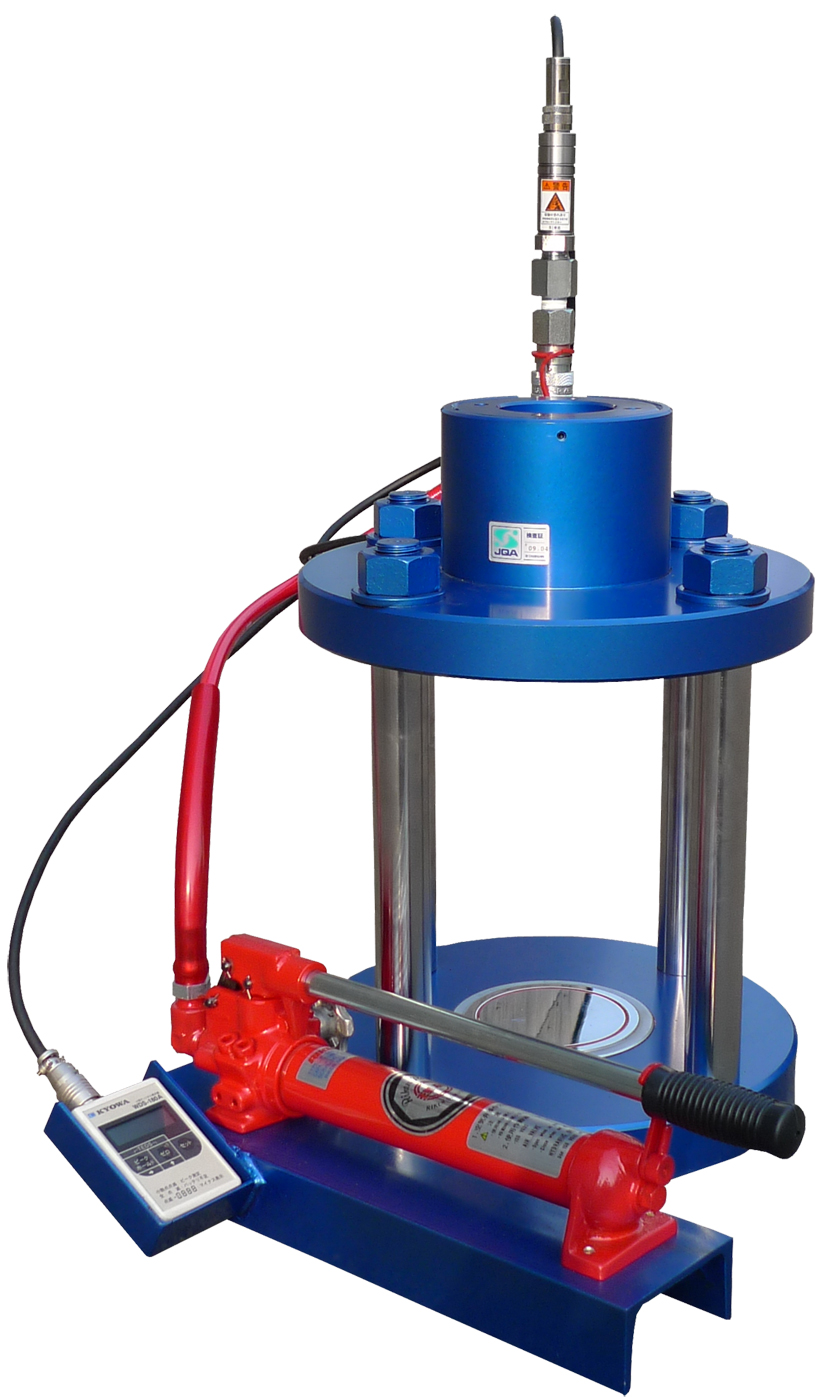

SH CONCRETE STRENGTH TESTER
SH-500 / SH-30
规格
| 型号 | SH-500 |
|---|---|
| 名称 | SH Concrete Strength Tester |
| ■Testing Capacity | |
| Specimen | ⌀100×200mm |
| Load Strength | 500ｋN {50ton} |
| ■Testing Capacity(30kN) ※可选配件 | |
| Specimen | ⌀50×100mm |
| Load Strength | 30ｋN {3ton} |
| ■Manual Pump | |
| Working Pressure | 70MPa {700kgf/cm2}(Max.) |
| ■尺寸・质量 | |
| 尺寸 | ⌀336×680mm |
| 质量 | 70kg |
| ※This tester is suitable for stationary. | |

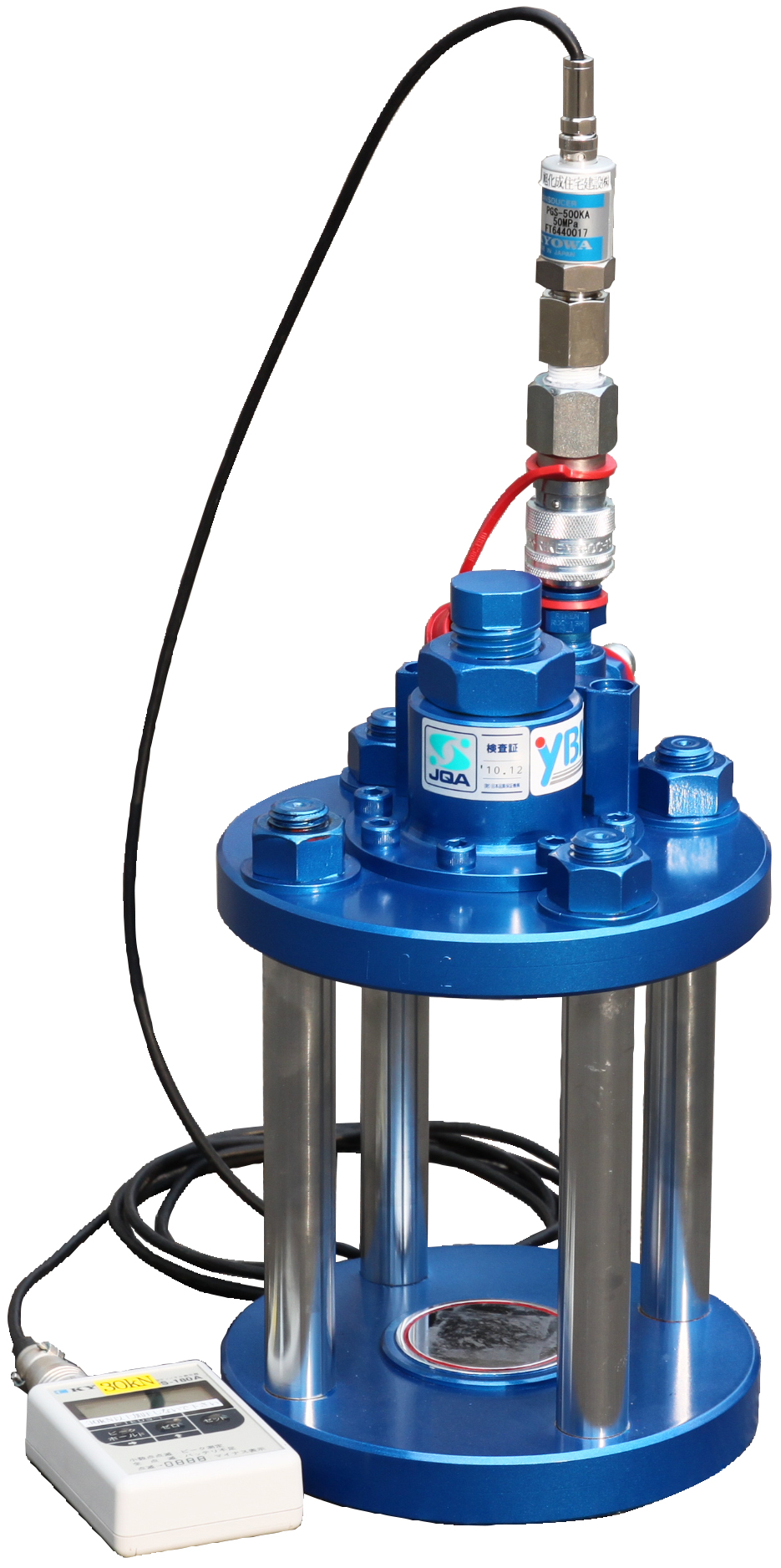

| 型号 | SH-30 |
|---|---|
| 名称 | Soil Uniaxial Compression Tester |
| ■Testing Capacity | |
| Specimen | ⌀50×100㎜ |
| Load of Strength | 30kN(Max.) |
| ■Manual Pump | |
| Working Pressure | 50MPa(Max.) |
| ■Hydraulic Cylinder | |
| Stroke | 15㎜ |
| Pressure Receiving Area | 6.42c㎡ |
| ■Pressure Sensor & Digital Indicator | |
| Capacity | for 30kN (Standard Accessory) |
| ■尺寸・质量 | |
| 尺寸 | ⌀185×420㎜ |
| 质量 | 15kg |
设备进行升级时，有关上述规格的变动恕不提前通知。
