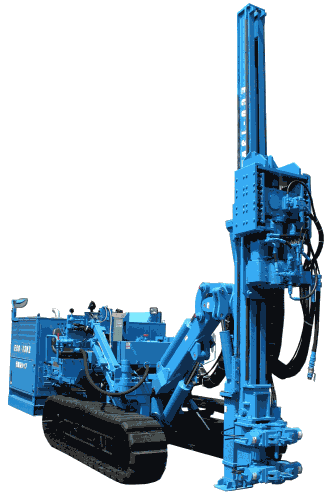

ROTARY VIBRATION POWER DRILL, LOW NOISE
| MODEL & TYPE | |
||
| TYPE | ALL HYDRAULIC ROTARY VIBRATION DRILL | ||
| MODEL | ECO-13V | ||
| DRILLING PERFORMANCE | |||
| CASING DIA. | 96 mm, 118 mm, 133 mm, 165 mm | ||
| DEPTH | APPROX. 80 M ( DEPEND ON SOIL CONDITION ) | ||
| ANGLE | 0 - 90 degree | ||
| HYDRAULIC DRIFTER | |||
| TYPE | ROTARY & VIBRATION FORCE, LOW NOISE | ||
| FEED | |||
| TYPE | ALL HYDRAULIC, CYLINDER FEED | ||
| FEED SPEED | 0 〜 25 m/min | ||
| FEED STROKE | 2,500 mm | ||
| MAX. FEED FORCE | 49 kN (5,000 kgf) | ||
| MAX. DRAW FORCE | 98 kN (10,000 kgf) | ||
| WEIGHT/DIMENSION | |||
| WEIGHT | 10,000 kg | ||
| TOTAL LENGTH | 6,910 mm | ||
| TOTAL WIDTH | 2,350 mm | ||
| TOTAL HEIGHT | 2,600 mm | ||
The Specifications are subject to change without prior notice.
